Angle Stop Valve

  • Description
  • Make an Inquiry

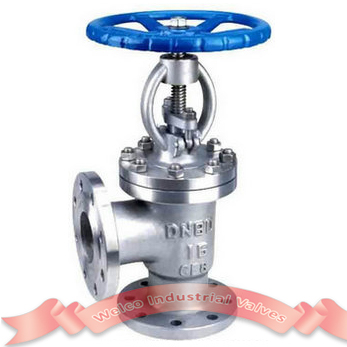

Angle stop valve is a common cut-off valve is mainly used to connect or disconnect the line of media is generally not used to adjust the flow. Angle stop valve is suitable for different pressure and temperature ranges, but are generally used in small diameter pipes, suitable for ≤ 425 ° C steam, oil, water and other media.

1. the basic structure: Angle
2. Nominal pressure: PN1.6-6.4 (MPa)
3. the nominal diameter: DN15-300 (mm)

Structural features:
1.Reliable sealing.
2.Good performance.
3.Easy to open and close.
4.Small volume.
5.Long service life

Standards:
Design and manufacture standard: GB / T 12233, GB / T-12 235
Structural length standard: GB / T 12221-2005
Connection flange standard: GB / T-9 113
Pressure and temperature rating: GB / T 12224-2005
Test test: GB / T 13927-2008

1.6MPa connection size

DN

in

L

D

D1

D2

f

b

z-φd

Do

H1

H2

W

15

1/2

65/90

95

65

45

2

14

4-φ14

100

240

265

7

20

3/4

75/95

105

75

55

2

16

4-φ14

100

245

270

7.5

25

1

80/100

115

85

65

2

16

4-φ14

120

250

275

8.5

32

21/4

95/105

135

100

78

2

18

4-φ18

140

260

290

12

40

21/2

100/115

145

110

85

2

18

4-φ18

140

290

325

14

50

2

115/125

160

125

100

2

20

4-φ18

160

300

335

19

65

21/2

145

180

145

120

2

20

4-φ18

180

355

400

27

80

3

155

195

160

135

2

22

4-φ18

240

400

450

42

100

4

175

215

180

155

2

24

8-φ18

240

455

495

50

125

5

200

245

210

185

2

26

8-φ18

280

530

560

64

150

6

240/225

280

240

210

2

28

8-φ23

320

605

650

85

200

8

275

335

295

265

2

30

8-φ23

360

650

770

155

2.5MPa connection size

DN

in

L

D

D1

D2

f

b

z-φd

Do

H1

H2

W

15

1/2

65/90

95

65

45

2

16

4-φ14

120

245

270

7.5

20

3/4

75/95

105

75

55

2

16

4-φ14

120

250

275

8.8

25

1

80/100

115

85

65

2

16

4-φ14

140

260

290

11

32

21/4

95/105

135

100

78

2

18

4-φ18

140

290

325

13

40

21/2

100/115

145

110

85

3

18

4-φ18

160

300

335

18

50

2

115/125

160

125

100

3

20

4-φ18

180

355

400

31

65

21/2

145

180

145

120

3

22

8-φ18

220

400

450

39

80

3

155

195

160

135

3

22

8-φ18

280

450

495

50

100

4

175

230

190

160

3

24

8-φ23

320

530

590

60

125

5

200

270

220

188

3

28

8-φ25

380

600

650

75

150

6

240/225

300

250

218

3

30

8-φ25

400

650

770

98

200

8

275

360

310

278

3

34

12-φ23

450

700

850

170

Angle stop valve installation and maintenance should note the following:
1. An angle type valve handwheel, lever operated cut-off valve can be installed in any position on the pipeline.
2. Angle type valve hand wheels, handles, and the transmission mechanism does not allow for lifting with.
3. Angle type valve the flow of media should be consistent with the body shown in the arrow direction.
