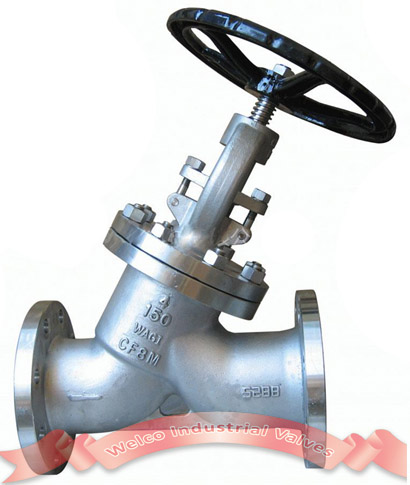

Y Type Globe Valve

Applicable Standards:
Design Standard: BS 1873, ASME B16.34
Face to Face: ASME B16.10, EN 558, DIN 3202
End Flange: ASME B16.5, DIN 2501
Buttwelding Ends: ASME B16.25.
Inspection and Test: API 598.

Products Range
Size: 1/2" ~ 24"
Rating: ANSI 150lb ~ 1500lb.
Body Materials: Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel.
Trim: Per API 600
Operation: Handwheel, Gear, Electric, Pneumatic, Hydraulic.

Design Features:
Straight pattern body design
Tapered, globe, or plug disc
Renewable or welded seat
Bolted bonnet or pressure sealed bonnet, back seal structure
Impact handwheel for 10" and above
Extended stem design for low temperature
ISO top flange for Bare stem globe valve.
