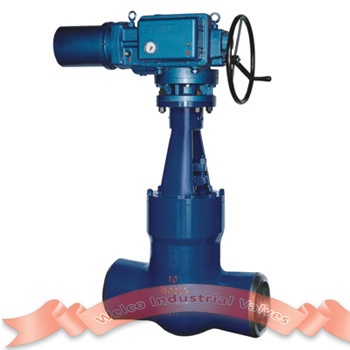

High temperature electric gate valve

  • Description
  • Make an Inquiry

High temperature electric gate valve can match large firepower generating units of 300MW, 600MW, 900MW, 1000MW about sub critical, super critical, ultra super critical.

Pressure: 16.0MPa, 25.0MP, 32MPa, 42MPa, 50MPa, 58.0MPa, 76MPa
Grade of valve: 900Lb. 1500Lb. 2000Lb. 2500Lb. 3000Lb. 3500Lb. 4500Lb
Temperature: 427ºC, 454ºC, 546ºC, 566ºC, 570ºC, 593ºC, 605ºC, 650ºC
Specification: 10mm~700mm; NPS1/2"~28"
Material: WCB, A105, WC6, WC9, C5, C12A, F91, F92.

Standard specification.
Design and manufacture: ASME B16.34, JB/T 3595
Inspection and Test: API 598, MSS SP61, JB/T 3595
End flange dimension: ASME B 16.5 ( for NPS≤24);
ASME B 16.47 series B, API605 or ASME B 16.47 series A, MSS SP-44(for NPS>24).
BW end dimension: ASME B 16.25.
Face to face and end to end: ASME B 16.10, JB/T3595, GB/T12224
Pressure-temperature ratings: ASME B 16.34, JB/T 3595

Performance specification for gate valve

Technical Specification

ANSI Class (Lbs)

150

300

400

600

900

1500

2500

Test Pressure

(MPA)

Shell Test

2.94

7.67

10.2

15.3

22.98

38.3

63.83

BackSeat Test

2.16

5.62

7.48

11.23

16.85

28.08

46.81

Seal Test

2.16

5.62

7.48

11.23

16.85

28.08

46.81

Air Test

0.55+/-0.07

Applicable temperature: -196 C degree to 600 C degree
Note: please take notice to choose different materials for different working conditions.
Application: Common type: water, steam, oil, liquid gas, natural gas etc.
Anti-sulphur type: gas oil etc which contains h2s, co composition.

The stem connection to the gate is a T-head design which is integral (without welding) with the stem.
Besides the general gate valves, our company also can make cryogenic gate valve, jacketed gate valve, bellow seal gate valve and extended stem gate valve for underground installation application.

Also we can make the different trim material according to API trim chart, likely monel, hastelloy C, inconel, alloy 20 and so on.
