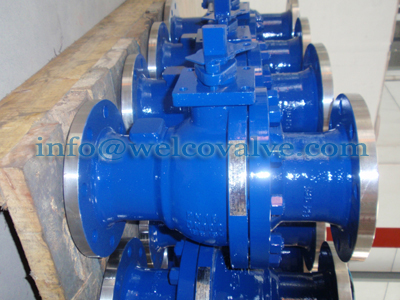

Ball valve can be two piece split body, flanged ends and butt-welded are available, Size 1/2" to 10", pressure 150Lb to 600Lb.

Features:
1.Forged ball or hallow ball.
2.Anti-fire safe design
3.Anti-static device
4.Free leakage of body Sealed construction
5.Low torque in operation
6. Extension stem at your choice

Standards Compliance
Design and manufacture: ANSI B16.34, API 608, API 6D, BS5351
Face to face dimensions: ANSI B16.10, API 6D
Flanged connection: ANSI B16.5, ANSI B16.47
Butt welded: ANSI B16.25
Fie-safe: API 607, API 6FA
Test and inspection: API 598, API6D

Standard Material Specifications
Body: ASTM A216 WCB,A351 CF8, A351 CF8M, A351 CF3,A351 CF3M,A351 CN7M, 1A(CD4MCu)
Cap: ASTM A216 WCB,A351 CF8, A351 CF8M, A351 CF3,A351 CF3M,A351 CN7M, , 1A(CD4MCu)
Ball: A105, A182 F304, A182 F316, A182 F304L, A182 F316L, A182 F6a, A350 LF2, 1A(CD4MCu)
Stem: A105, A182 F304 A182 F316 A182 F304L A182 F316L, A182 F6a, A350 LF2, 1A(CD4MCu)
Seat: A105, A182 F304, A182 F316, A182 F304L, A182 F316L, A182 F6a, A350 LF2, 1A(CD4MCu)
Seat ring: PTFE/RPTFE/NYLON/PEEK
Fixed trunnion: A105, A182 F304, A182 F316, A182 F304L, A182 F316L,1A(CD4MCu)
O-ring: VITON, PTFE, NBR
Seat spring: 17-7PH/Inconel/304/316
Cover bolt: A193 B7, A193 B8, A193 B8M, A320 L7
Cover nut: A194 2H, A194 8, A194 8M, A194-4
Bearing: SF-1, 304SS/PTFE
