Worm gear

  • Description
  • Make an Inquiry

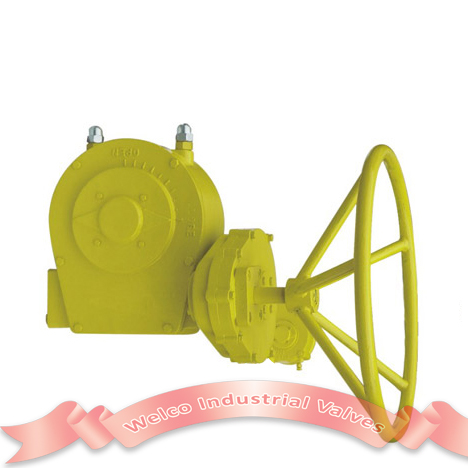

The worm gear box is a 90° transition back to drive for severing ball valve, butterfly valve, plug valve and so on. Special type of output to 360° corner. Also the product can be connected with multi-turn electric actuator for large output torque to meet the working requirements.

Model Number

Output Torque

Output Thrust

Speed Ratio

Link Flange

Axis diameter

Handwheel diameter

WK000-H/305

200N.m

40K.N

4:1

F10

Ф20

Ф305

WK00-H/400

400N.m

100K.N

3:1

F14

Ф32

Ф400

WK00-/305

500N.m

100K.N

2.61:1

F14

Ф32

Ф400

WK-0/460

750N.m

150K.N

3.077:1

F16

Ф32

Ф460

WK-0A/F16/460

1125N.m

1800K.N

8.6:1

F16

Ф32

Ф460

WK-1/460

1500N.m

200K.N

4.1:1

F25

Ф32

Ф460

WK-1A-F25/610

2250N.m

240K.N

11.07:1

F25

Ф32

Ф610

WK-2/610

3000N.m

450K.N

6:1

F30

Ф32

Ф610

WK-2A-F30/610

4500N.m

450K.N

16.16:1

F30

Ф32

Ф610

WK-3/610-A

6800N.m

840K.N

22.17:1

F35

Ф32

Ф610

WK-3A/810

7800N.m

840K.N

32.02:1

F35/F40

Ф32

Ф810

WK-3ASA/810-A

9000N.m

840K.N

45.33:1

F35/F40

Ф32

Ф810

WK-4A/1000-A

12000N.m

1400K.N

44.07:1

F40

Ф32

Ф1000

WK-4ASA/1000-A

15000N.m

1400K.N

46.2:1

F40

Ф32

Ф1000

WK-5A/1200-A

18800N.m

2400K.N

45.47:1

F48/F40

Ф32

Ф1000

WK-5ASA/1200-A

28000N.m

2400K.N

88:1

F48

Ф32

Ф1000
