How & Why Are Butterfly Valves Used?

Why are butterfly valves used, how are butterfly valves used?

A Butterfly Valve is used to control the flow of material through a circular pipe or tube. Typically the material is air, gas, steam, or liquid. Certain dry materials may also be handled through a butterfly valve.

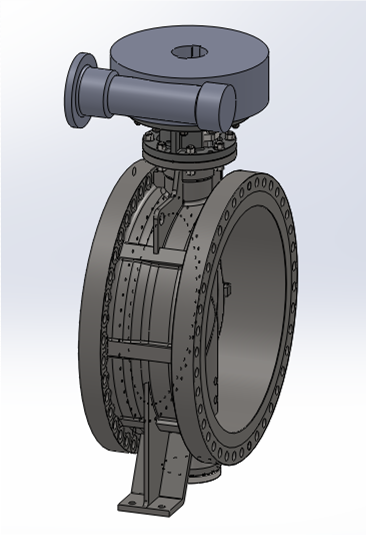

Simply, a butterfly valve consists of a circular disc with its pivot axis at right angles to the direction material is flowing. The valve is made up of a body, seat, disc, stem, and actuator. Each component part is available in a variety of materials called “trim features.” Properly combining trim features to address material handled and environment is important in selecting the correct model valve for its intended service.

Body
A butterfly valve body can be made of cast iron, ductile iron, aluminum, carbon steel, stainless steel and exotic metals.

Butterfly valves are available in wafer and lug style. Wafer style valves are installed “sandwiched” between pipe flanges. This style of valve is easier to replace or install. However, replacing a wafer valve requires the conveying line to be drained. Once the valve is removed, there is nothing to seal material either upstream or downstream from the removal point.

Lug style valves contain tapped holes that allow them to be bolted directly to a mating flange. In the closed position, the valve independently seals material to the upstream and downstream side. Because of this independent sealing, lug valves may be used to isolate downstream equipment that may require replacement or maintenance.

Seat
Resilient seated valves are the most commonly used types. The interior of the valve body is lined with an elastomer seat. Seats may be made of EPDM, buna, viton, Teflon, natural rubber, carbox, chlorbutyl, white buna, or white neoprene as well as other materials. Choice of seat material depends on temperatures, pressures and material handled.

The seats of some inexpensive butterfly valves are typically molded into the body and cannot be repaired or replaced. Precision butterfly valves typically contain removable seats that are repairable or replaceable.

Disc
The valve disc (controlled by the actuator) regulates the flow of material within the conveying line. Disc materials are available to meet a variety of application demands: stainless steel, aluminum/bronze, ductile iron, ductile/epoxy coated, ductile/nickel plated, ductile/nylon II coated as well as others. As the disc is directly in the material flow stream, care must be taken in specifying the proper material of construction and disc shape. Some discs are designed to allow increased flow patterns through the piping.

Stem
The stem passes through the center of the valve, attaches to the actuator, and positions the disc for material flow control and shut off. Depending on the application and valve size, stems may be one or two-piece construction. Typical materials of construction include carbon steel and different grades of stainless steel.

Actuator
A variety of actuators are available for butterfly valves: manual handle, gear, pneumatic, electric and electro-hydraulic. Also, actuators that may be enclosed in special housings and buried are available for certain underground applications.

Other considerations
Depending on the application, additional valve features that may need to be considered. Some of these features include: the manner in which the stem and disc are attached, the way the stem and disc assembly mount inside the valve body, undercutting of disc, type of material used in stem bushings and packing, and availability of a ring seal between the seat and valve body.

Working with a company that can offer and properly apply a variety of trim features will enhance the success of the butterfly valve in a specific application.

Applications

As stated earlier, Butterfly Valves are generally specified for most air, gas, steam, and liquid applications. They offer an excellent, economically priced, positive shut-off valve for handling materials (e.g. gases and liquids) that are easily displaced by the valve disc as it closes. When handling this type of material, butterfly valves provide a reliable, bubble-tight, bi-directional shut off.

Care must be taken when applying a butterfly valve in semi-abrasive or abrasive dry material applications (this includes slurry applications that contain suspended particles because:
1) A valve disc closing on dry bulk material will create premature wear to the rubber seat.

2) The obstructed orifice created by the disc may cause bridging of material on the inlet side of the valve.

3) A disc opening or closing on a standing column of dry material may cause the material to jam / pack.

4) Particles of dry material or suspended particles in slurries may become trapped between the disc and seat, causing conveying line inefficiencies.
