D341X-10 butterfly valve

  • Description
  • Make an Inquiry

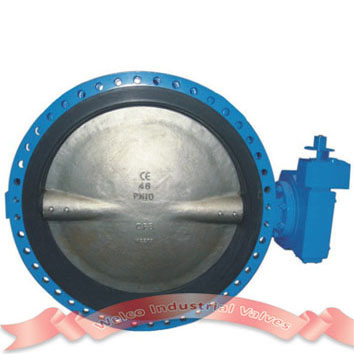

D341X-10 butterfly valve is worm gear operated, concenter disc, rubber lined for pressure 10bar. This butterfly widely valve is widely used in water source projects, seawater, urban water supply and drainage, sewage treatment, electric power, petroleum, petrochemical, heat supply, shipbuilding, medicine and metallurgy industries.

Size: DN50 to DN1800(2" to 72"),
Pressure rating: PN10/16(ANSI Class 150LBS).
Design and manufacture: API609 and EN593.

We have replaceable seat and unreplace seat type for different customer.
For replaceable seat type, the seat can be easily moved from the body, and no need to damage any components at all.
For unreplaceable seat type, the rubber seat is fussioned on the body directly and no possible to move at all, so this type will have better torque and suitable for dead end service.

Our D341X-10 butterfly valve have different connecting type: Wafer (semi lug), lug, single flange and double flange ends. For the connecting of disc and shaft, we use special key instead of pin to drive the disc, so the shaft will be free from the medium and the valves will be more safety for some corrosion medium. Valve can be operated by level, gear box with manual handwheel, electrical or pneumatic actuators for automation purpose.

Main materials for D341X-10 butterfly valve:
Body: cast iron GG25 / ASTM A126 CLASS B, ductile iron GGG40, casting steel WCB.
Disc material: Ductile iron GGG40 NP, CF8, CF8M, 1.4410, 1.4529. Hasstelloy-C, aluminum bronze....
Seat: EPDM, NBR, Viton(FPM), PTFE....
