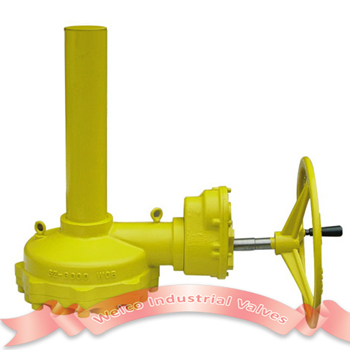

The bevel gear is a 360° manual device, the product is suitable for wedge gate valve, flat gate valve, globe valve etc. The hand wheel is made of casting tube.
|
Model Number |
|
Output N.M |
A |
B |
C |
D |
E |
F |
Фd |
d1 |
G |
Link Flange |
|
WK000-H/305 |
|
200 |
125 |
146 |
59 |
102 |
218 |
M45X2 |
70 |
102 |
Ф20 |
F10 |
|
WK00-H/400 |
|
400 |
178 |
178 |
67 |
120 |
226 |
M60X2 |
100 |
140 |
Ф25 |
F14 |
|
WK00-/305 |
|
500 |
178 |
178 |
76 |
121 |
235 |
M75X2 |
100 |
140 |
Ф32 |
F14 |
|
WK-0/460 |
|
750 |
216 |
216 |
90 |
143 |
240 |
M75X2 |
130 |
165 |
Ф32 |
F16 |
|
WK-0A/F16/460 |
Two-step |
1125 |
216 |
216 |
90 |
143 |
325 |
M75X2 |
130 |
165 |
Ф32 |
F16 |
|
WK-1/460 |
|
1500 |
288 |
288 |
101 |
165 |
300 |
M86X2 |
200 |
254 |
Ф32 |
F25 |
|
WK-1A-F25/610 |
Two-step |
2250 |
288 |
288 |
101 |
165 |
435 |
M86X2 |
200 |
254 |
Ф32 |
F25 |
|
WK-2/610 |
|
3000 |
350 |
390 |
140 |
220 |
377 |
M108X2 |
230 |
298 |
Ф32 |
F30 |
|
WK-2A-F30/610 |
Two-step |
4500 |
350 |
390 |
140 |
220 |
522 |
M108X2 |
230 |
298 |
Ф32 |
F30 |
|
WK-3/610-A |
Two-step |
6800 |
415 |
505 |
172 |
331 |
519 |
M158X2 |
230 |
298 |
Ф32 |
F35 |
|
WKX-3A/810 |
Two-step |
7800 |
415 |
505 |
172 |
331 |
519 |
M158X2 |
260/300 |
356/406 |
Ф32 |
F35/F40 |
|
WKX-3ASA/810-A |
Two-step |
9000 |
415 |
505 |
172 |
331 |
519 |
M158X2 |
260/300 |
356/406 |
Ф32 |
F35/F40 |
|
WKX-4A/1000-A |
Two-step |
12000 |
475 |
620 |
211.5 |
361 |
576 |
M158X2 |
300 |
406 |
Ф32 |
F04 |
|
WKX-4ASA/1000-A |
Two-step |
15000 |
475 |
620 |
211.5 |
361 |
621.5 |
MX1582 |
300 |
406 |
Ф32 |
F40 |
|
WKX-5A/1200-A |
Two-step |
18800 |
560 |
620 |
211.5 |
361 |
621.5 |
M158X2 |
390 |
483 |
Ф32 |
F48 |
|
WKX-5ASA/1200-A |
Two-step |
28000 |
560 |
620 |
211.5 |
361 |
621.5 |
MX1582 |
370 |
483 |
Ф32 |
F48 |
