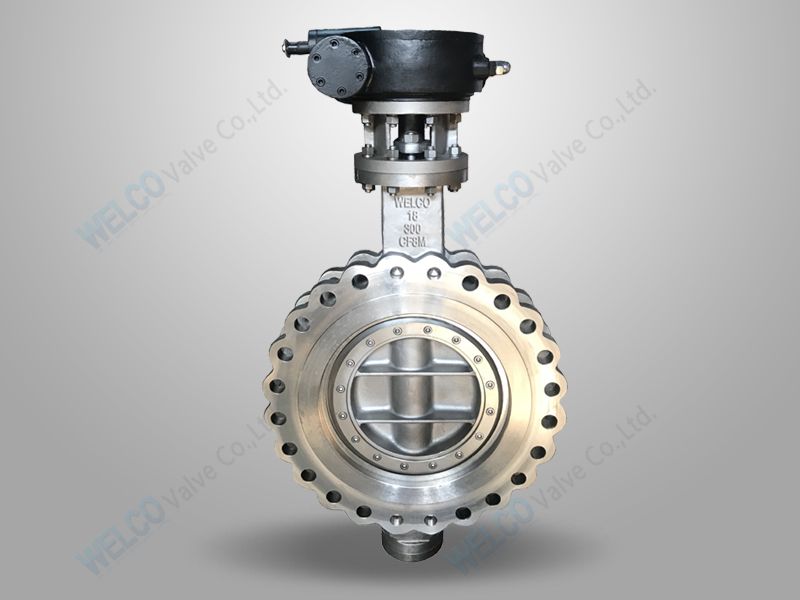

API 609 stainless steel triple offset butterfly valve usually can be small or large size for nominal diameter. The maximum diameter can be up to DN3000 (120"). Materials can be cast iron, cast steel, stainless steel etc.

Product Details:
Size: NPS 3"~120", DN1200~DN3000
Design pressure: PN6, PN10, PN16, PN25, Class150
Material: 1020, A53, SPSS, ST37, WCB, LCB, LCC, CF8, CF8M, CF3, CF3M
EPDM, PTFE or Metal seat
Design and manufacture: API 609, MSS SP-67, MSS SP-68, BS EN 1092
Face to face standards: API 609, MSS SP-67, MSS SP-68, BS EN 1092
End connections standards: ASME B16.5, ASME B16.47, DIN 2501
Test standards: API 598, BS 6755, ISO 5208, BS EN 12266
Operation: Gear, electrical actuator, pneumatic actuator.

This butterfly valve is widely used in water pipeline system, foodstuff, beverage, pharmaceutics, boiler, oil refining, chemical machinery industries, chemical and petrochemical processing, power generating plants, pulp and paper manufacturing processing, desalination, steelmaking, coal and mining industries.
