300Lb Lugged type butterfly valve

  • Description
  • Make an Inquiry

300Lb Lugged type butterfly valve with triple offset metal hard seal design, materials are carbon steel WCB, LCB, stainless steel CF8, CF3, CF8M, CF3M for different working situations.

Features:
1) Design and manufacture: API 609, EN593, DIN 3354
2) Inspection and test: API 598, DIN3230, BS5146
3) Face to Face: API609, DIN 3202 K2
4) End flange dimension: ASME B16.5, ASME B16.47, API 605 or BS EN 1092
5) Top flange: ISO5211
6) Connecting: wafer lug, flange or weld
7) Size: 2" - 60", DN50 - DN1500
8) Pressure: Class 125 - Class 600, PN6 - PN100
9) Temperature: -20 C degree - 400 C degree
10) Body: WCB / CF8 / CF8M / CF3 / CF3M
11) Disc: WCB / CF8 / CF8M / CF3 / CF3M
12) Stem: 13Cr / 304 / 316 / 17-4PH
13) Seal: laminated metal seal, U-type metal seal
14) Operation: worm gear, this lug type butterfly valve also available for pneumatic, electric, hydraulic or pneumatic-hydraulic actuator
15) Property: longer service life and high temperature and pressure

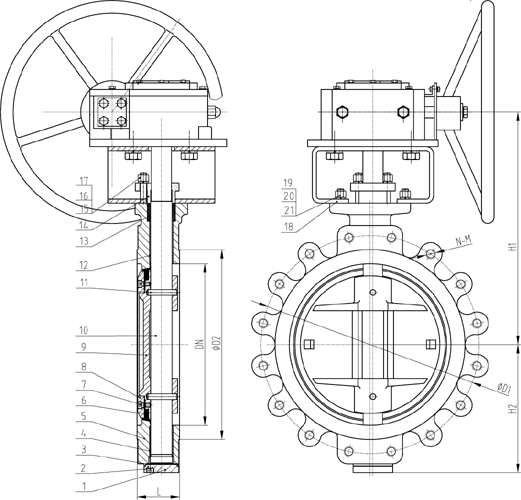

16) Please refer to the general assembly drawing for lug type butterfly valve as below.
